How to write the sounds file?

Qumin works from the assumption that your paradigms are written in phonemic notation. The phonological segments file provides a list of phonemes and their decomposition into distinctive features. This file is used to recognize phonological similarity and natural classes when creating and handling alternation patterns.

To create a new sounds file, the best is usually to refer to an authoritative description, and adapt it to the needs of the specific dataset. In the absence of such a description, I suggest to make use of Bruce Hayes’ spreadsheet as a starting point (he writes +, - and 0 for our 1,0 and -1).

Format

The Sounds file must be a valid Paralex _sounds_ file in csv format.

Each row of the segments file describes a single phoneme. The first column gives phonemes as they are written in the paradigms file. Each column represents a distinctive feature. Here is an example with just 10 rows of the segments table for French verbs:

sound_id	sonant	syllabique	consonantique	continu	nasal	haut	bas	arrière	arrondi	antérieur	CORONAL	voisé	rel.ret.
p	0	0	1	0	0	0		0		1		0	0
b	0	0	1	0	0	0		0		1		1	0
t	0	0	1	0	0	0		0		1	1	0	0
s	0	0	1	1	0	0		0		1	1	0	1
i	1	1	0	1	0	1	0	0	0			1	1
y	1	1	0	1	0	1	0	0	1			1	1
u	1	1	0	1	0	1	0	1	1			1	1
o	1	1	0	1	0	0		1	1			1	1
a	1	1	0	1	0	0	1	1	0			1	1
ɑ̃	1	1	0	1	1	0	1	1	0			1	1

Some conventions:

• The first column must be called sound_id.

• The phonological symbols, in the sound_id column cannot be one of the reserved character : . ^ $ * + ? { } [ ] / | ( ) < > _  ⇌ , ;.

Warning

The index header used to be Seg. (for segment), and Qumin expected two more columns ALIAS and UNICODE. This is not supported anymore, and Qumin now expects sound_id as a primary key, per the Paralex standard.

Shorthands

Warning

Qumin used to support a second header row to provide distinctive feature shorthands. These are not supported anymore.

One can provide some extra rows in the table to define shorthand names for some natural classes. These names have to start and end by “#”. Here an example for the French segments file, giving shorthands for C (consonants), V (vowels) and G (glides):

sound_id	sonant	syllabique	consonantique	continu	nasal	haut	bas	arrière	arrondi	antérieur	CORONAL	voisé	rel.ret.
#C#		0	1
#V#	1	1	0	1								1	1
#G#	1	0	0	1	0	1	0			0		1	1

Values of distinctive features

Distinctive features are usually considered to be bivalent: they can be either positive ([+nasal]) or negative ([-nasal]). In the sounds file, positive values are written by the number 1, and negative values by the number 0. Some features do not apply at all to some phonemes, for example consonants are neither [+round] nor [-round]. This can be written either by -1, or by leaving the cell empty. While the first is more explicit, leaving the cell empty makes the tables more readable at a glance. The same strategy is used for features which are privative, as for example [CORONAL]: there is no class of sounds which are [-coronal], so we can write either 1 or -1 in the corresponding column, not using 0.

While 1, 0 and -1 (or nothing) are the values that make the most sense, any numeric values are technically allowed, for example [-back], [+back] and [++back] could be expressed by writing 0, 1, and 2 in the “back” column. I do not recommend doing this, as Qumin will not recognize these as three grades of the same value (a scale), but rather three incompatible values of the same feature.

When writing sounds file, it is important to be careful of the naturality of natural classes, as Qumin will take them at face value. For example, using the same [±high] feature for both vowels and consonants will result in a natural class of all the [+high] sounds, and one for all the [-high] sounds. Sometimes, it is better to duplicate some columns to avoid generating unfounded classes.

Monovalent or bivalent features

Frisch (1996) argues that monovalent features (using only -1 and 1, not 0) are to be preferred to bivalent features, as the latter implicitly generate natural classes for the complement features ([-coronal]), which is not always desirable. In Qumin, both monovalent and bivalent features are accepted, but monovalent features are often easier to interpret. Internally, the program will expand all 1 and 0 into + and - values. As an example, take this table which classifies the three vowels /a/, /i/ and /u/:

sound_id	high	low	front	back	round	Non-round
a		1		1		1
i	1		1			1
u	1			1	1

Internally, Qumin will construct the following table, which looks almost identical because we used monovalued features:

sound_id	+high	+low	+front	+back	+round	+Non-round
a		x		x		x
i	x		x			x
u	x			x	x

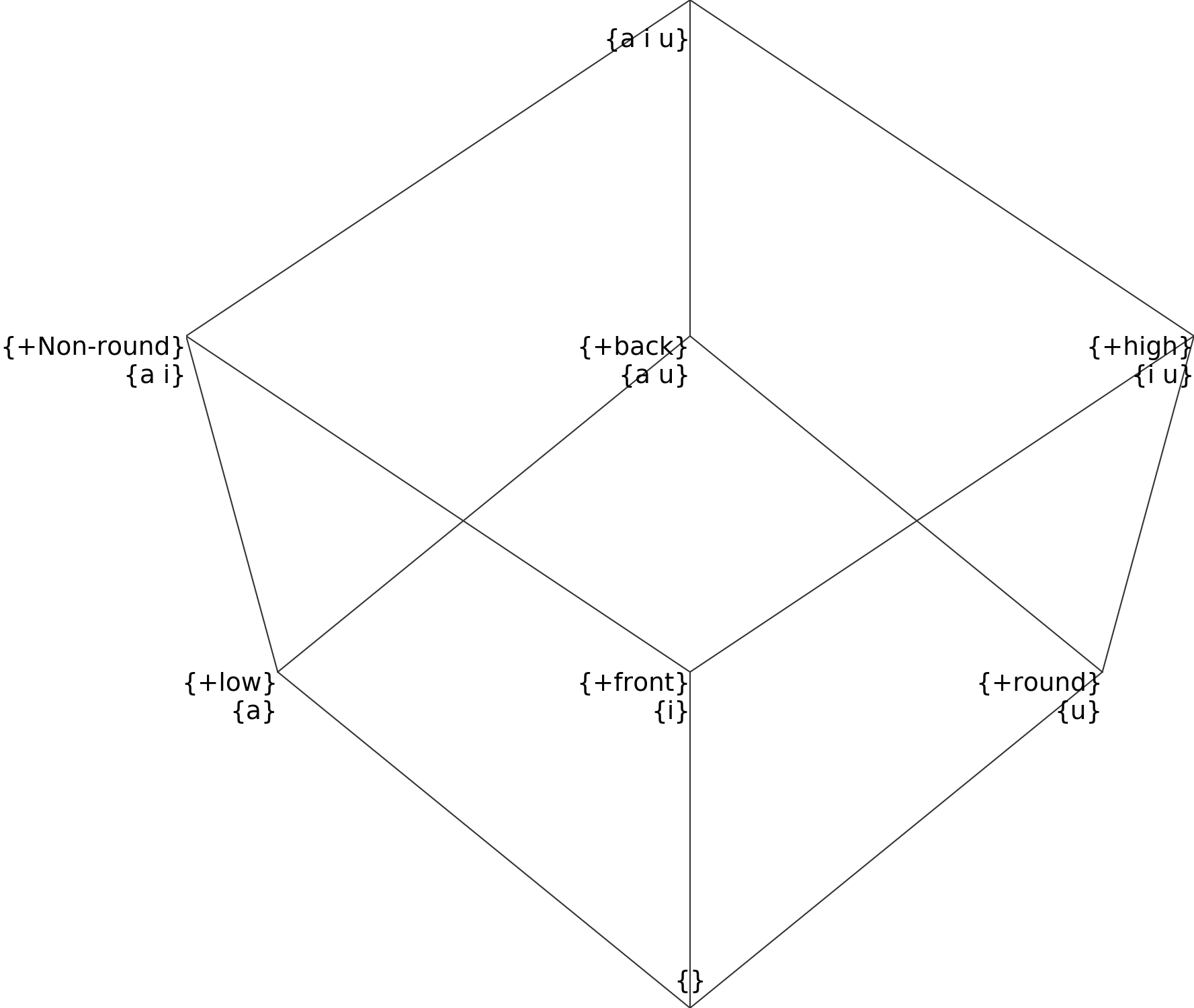

This will then result in the following natural class hierarchy:

To visualize natural class hierarchies declared by segment files, you can use FeatureViz.

The same thing can be achieved with less columns using binary features:

sound_id	high	front	round
a	0	0	0
i	1	1	0
u	1	0	1

Internally, these will be expanded to:

sound_id	+high	-high	+front	-front	+round	-round
a		x		x		x
i	x		x			x
u	x			x	x

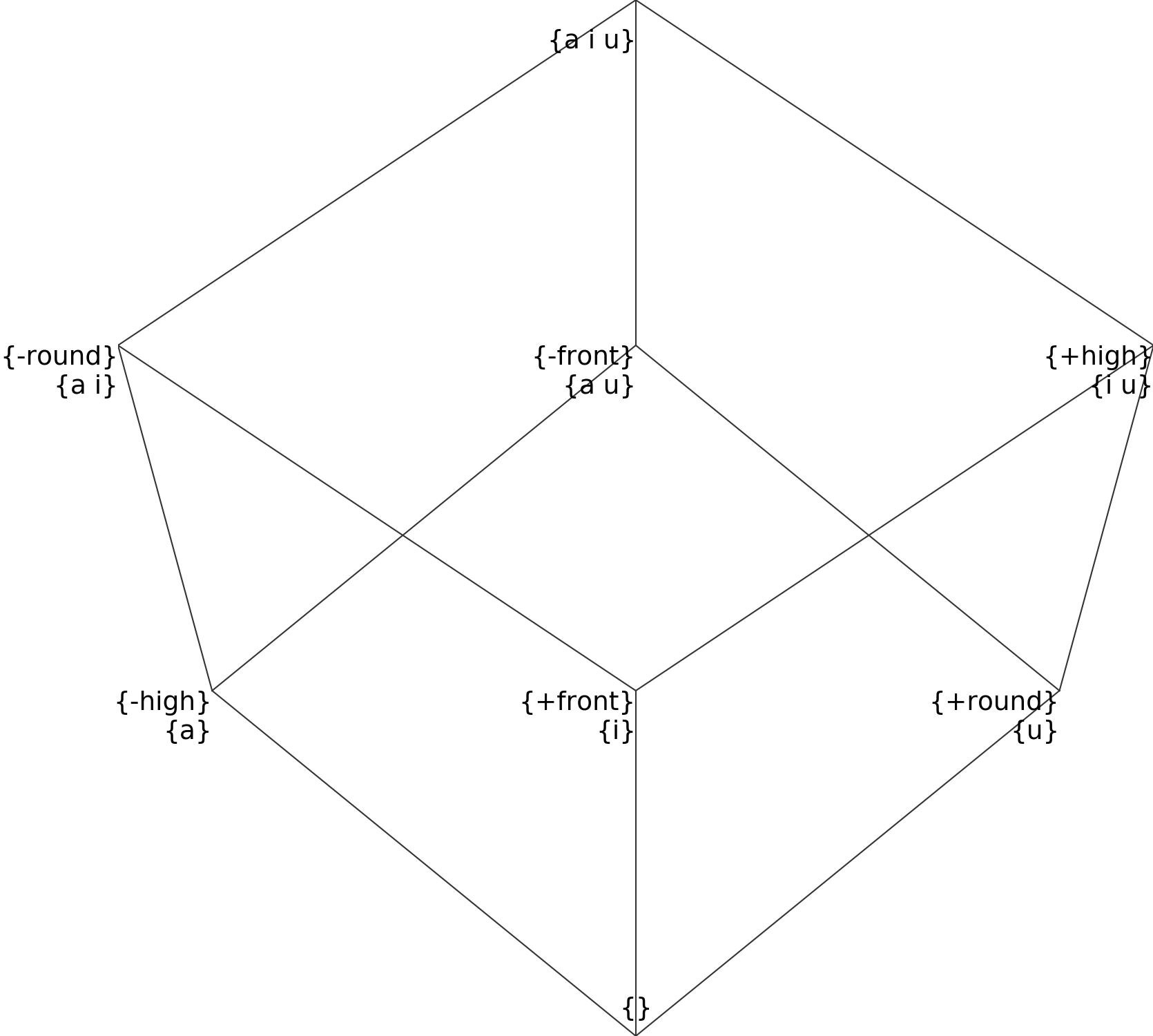

Which is the same thing as previously, with different names. The class hierarchy is also very similar:

Warning, some segments are ancestors of other segments

The following error occurs when the table is well formed, but specifies a natural class hierarchy which is not usable by Qumin:

Exception: Warning, some segments are  ancestors of other segments :
   p is the same node as [p-kʷ]
       [p-kʷ] ([pĸ]) = [+cons -son -syll +lab -round -voice -cg -cont -strid -lat -del.rel -nas -long]
       kʷ (ĸ) = [+cons -son -syll +lab -round +dor +highC -lowC +back -tense -voice -cg -cont -strid -lat -del.rel -nas -long]
   k is the same node as [k-kʷ]
       [k-kʷ] ([kĸ]) = [+cons -son -syll +dor +highC -lowC +back -tense -voice -cg -cont -strid -lat -del.rel -nas -long]
       kʷ (ĸ) = [+cons -son -syll +lab -round +dor +highC -lowC +back -tense -voice -cg -cont -strid -lat -del.rel -nas -long]

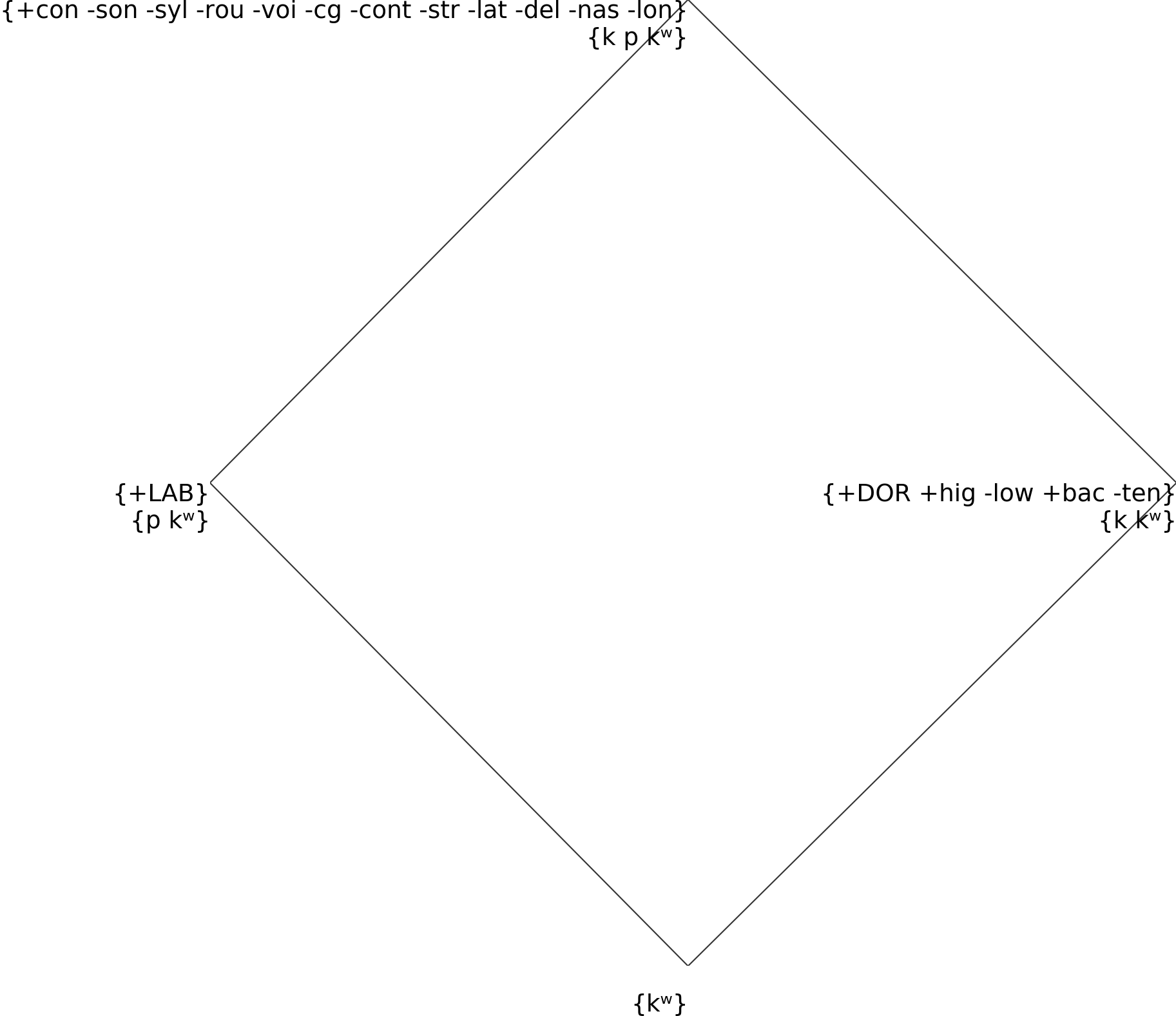

What happened here is that the natural class [p-kʷ] has the exact same definition as just /p/. Similarly, the natural class [k-kʷ] has the same definition as /k/. The result is the following structure, in which /p/ and /k/ are superclasses of /kʷ/:

In this structure, it is impossible to distinguish the natural classes [p-kʷ] and [k-kʷ] from the respective ponemes /p/ and /k/. Instead, we want them to be one level lower. If we ignore the bottom node, this means that they should be leaves of the hierarchy.

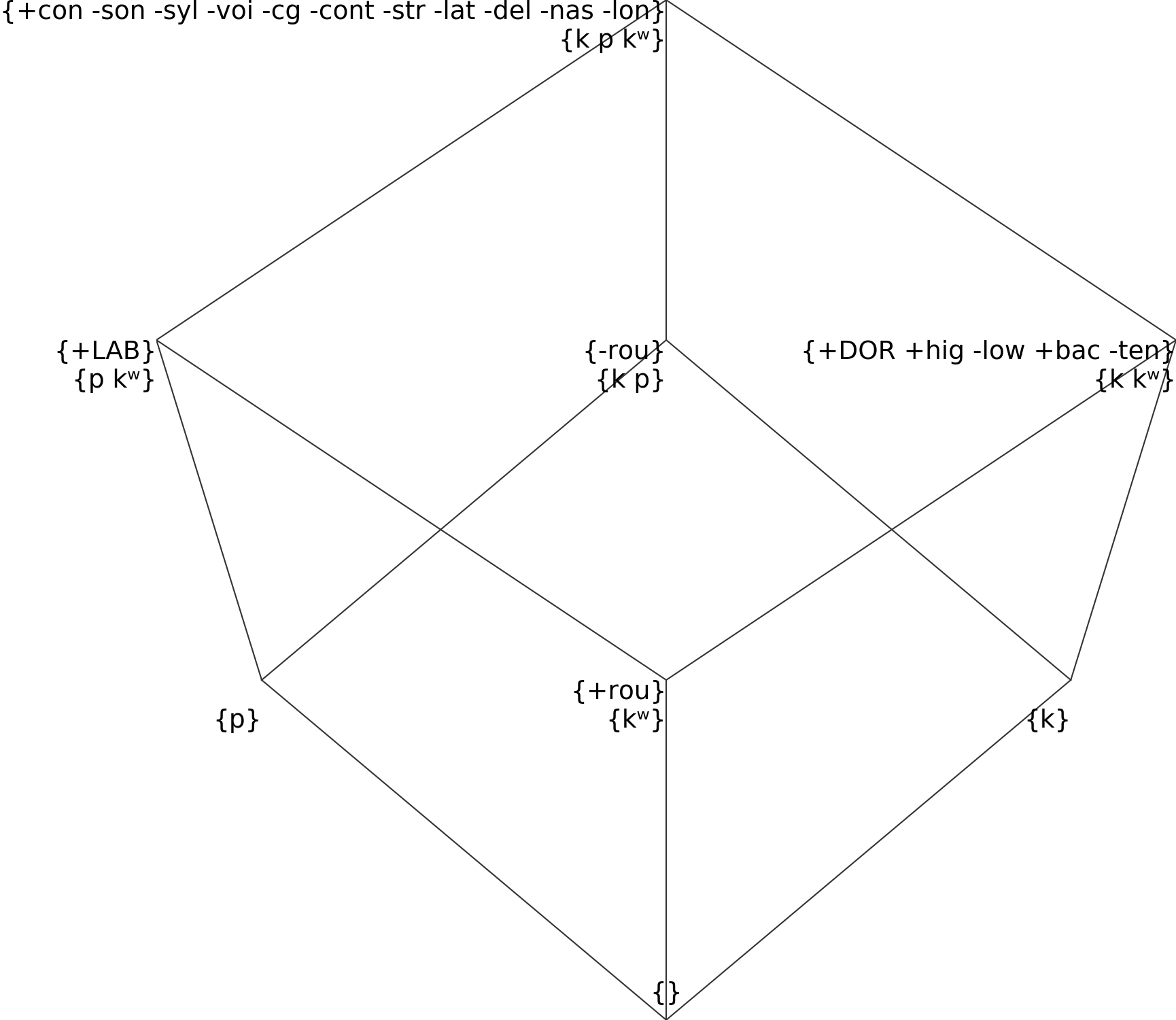

The solution is to ensure that both /p/ and /k/ have at least one feature divergent from [kʷ]. Usually, kʷ is marked as [+round], but in the above it is mistakenly written [-round]. Correcting this definitions yields the following structure, and solves the error:

Neutralizations

While having a segment be higher than another in the hierarchy is forbidden, it is possible to declare two segments with the exact same features. This is useful if you want to neutralize some oppositions, and ignore some details in the data.

For example, this set of French vowels display height oppositions using the [±low] feature:

sound_id	sonant	syllabique	consonantique	continu	nasal	haut	bas	arrière	arrondi	antérieur	coronal	voisé	rel.ret.
e	1	1	0	1	0	0	0	0	0	-1	-1	1	1
ɛ	1	1	0	1	0	0	1	0	0	-1	-1	1	1
ø	1	1	0	1	0	0	0	0	1	-1	-1	1	1
œ	1	1	0	1	0	0	1	0	1	-1	-1	1	1
o	1	1	0	1	0	0	0	1	1	-1	-1	1	1
ɔ	1	1	0	1	0	0	1	1	1	-1	-1	1	1

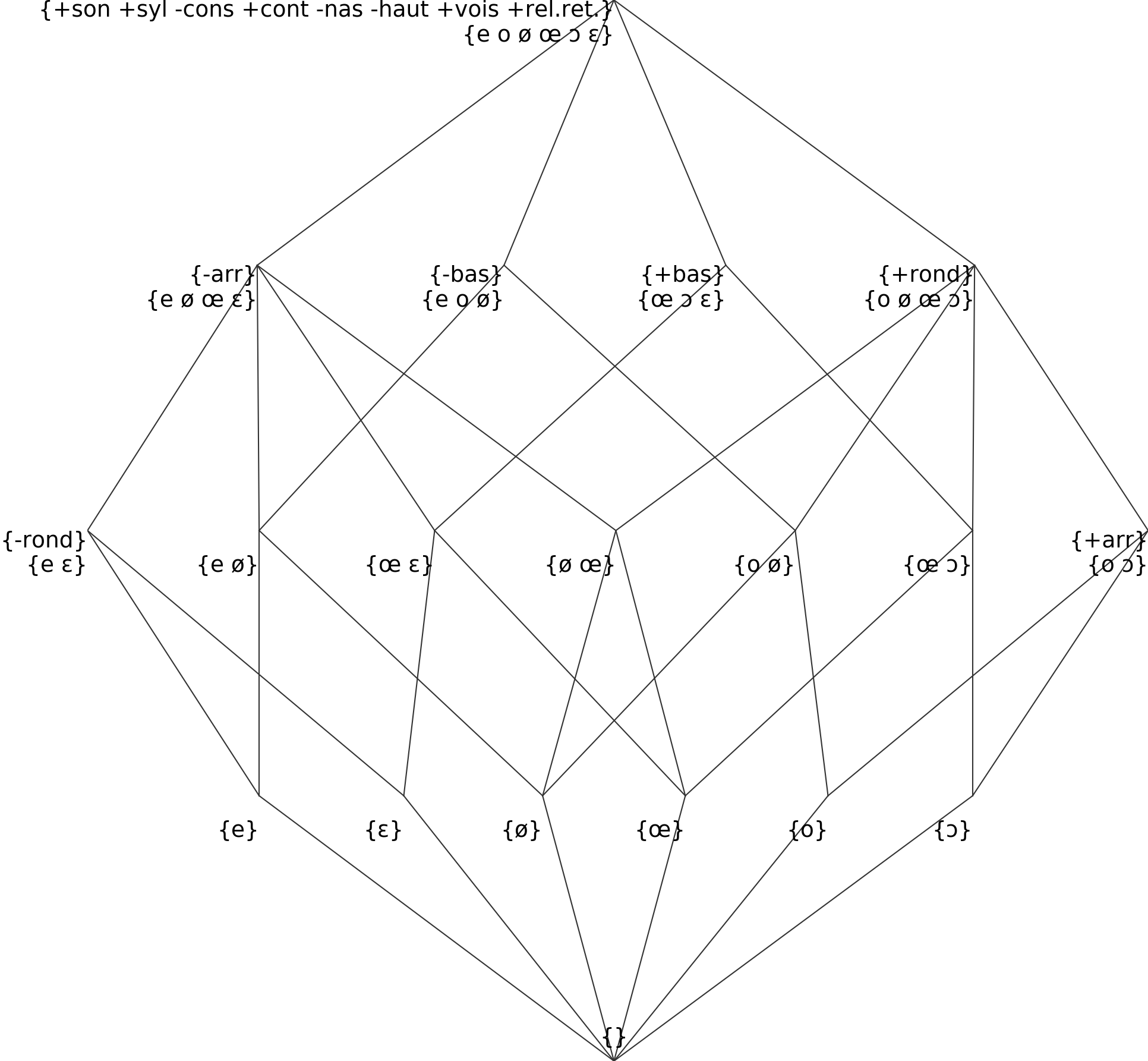

Leading to this complex hierarchy:

Due to regional variations, the French Vlexique sometimes neutralizes this oppositions, and writes E, Ø and O to underspecify the value of the vowels. The solution is to neutralize entirely the [±low] distinction for these vowels, writing repeated rows for E, e, ɛ, etc:

sound_id	sonant	syllabique	consonantique	continu	nasal	haut	bas	arrière	arrondi	antérieur	coronal	voisé	rel.ret.
E	1	1	0	1	0	0	-1	0	0	-1	-1	1	1
e	1	1	0	1	0	0	-1	0	0	-1	-1	1	1
ɛ	1	1	0	1	0	0	-1	0	0	-1	-1	1	1
Ø	1	1	0	1	0	0	-1	0	1	-1	-1	1	1
ø	1	1	0	1	0	0	-1	0	1	-1	-1	1	1
œ	1	1	0	1	0	0	-1	0	1	-1	-1	1	1
O	1	1	0	1	0	0	-1	1	1	-1	-1	1	1
o	1	1	0	1	0	0	-1	1	1	-1	-1	1	1
ɔ	1	1	0	1	0	0	-1	1	1	-1	-1	1	1

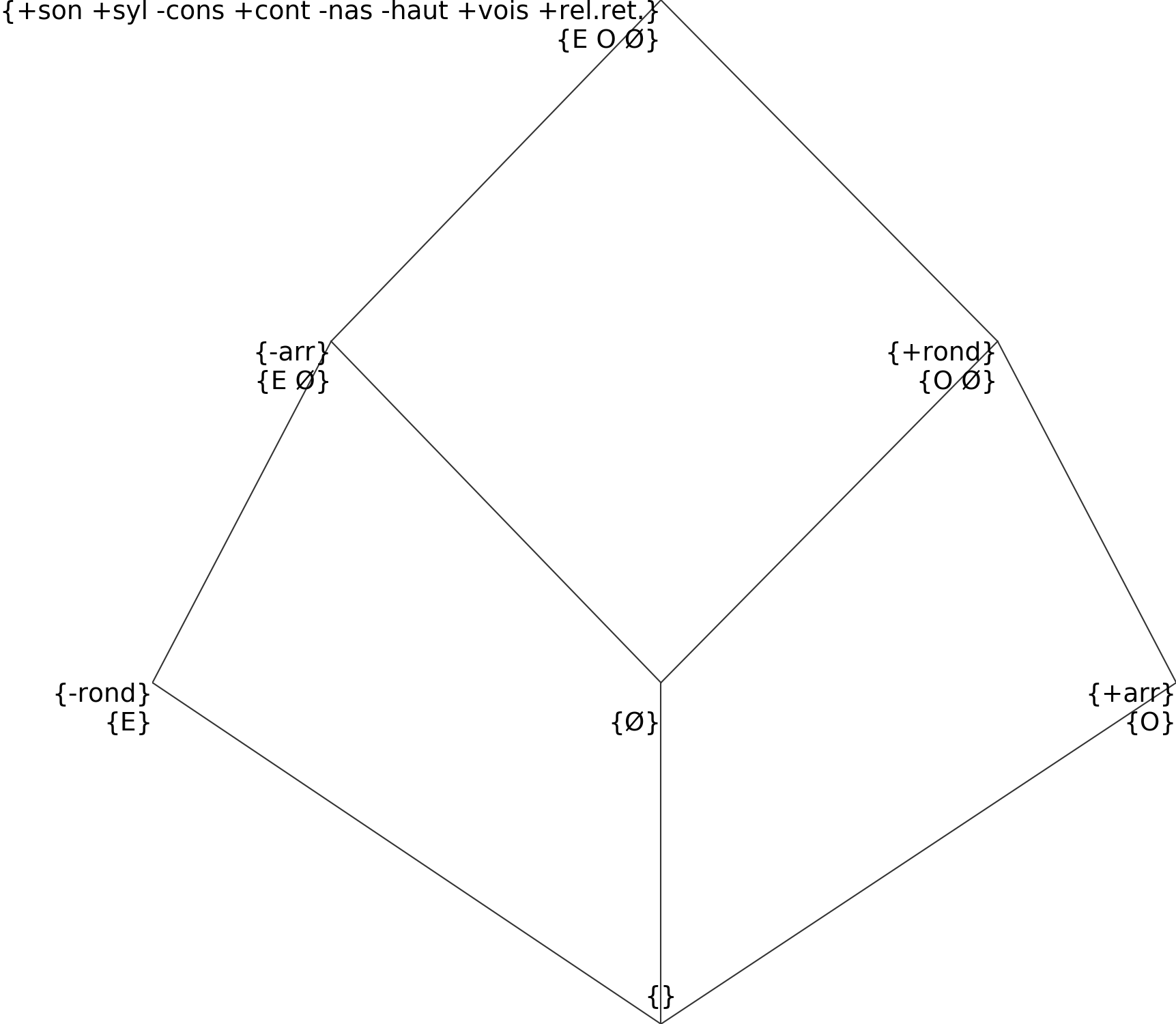

Internally, Qumin will replace all of these identical characters by a single unified one (the first in the file). The simplified structure becomes:

Creating scales

Rather than using many-valued features, it is often preferable to use a few monovalent or bivalent features to create a scale. As an example, here is a possible (bad) implementation for tones, which uses a single feature “Tone”.

sound_id	Tone
˥	3
˦	2
˧	1
˨	0

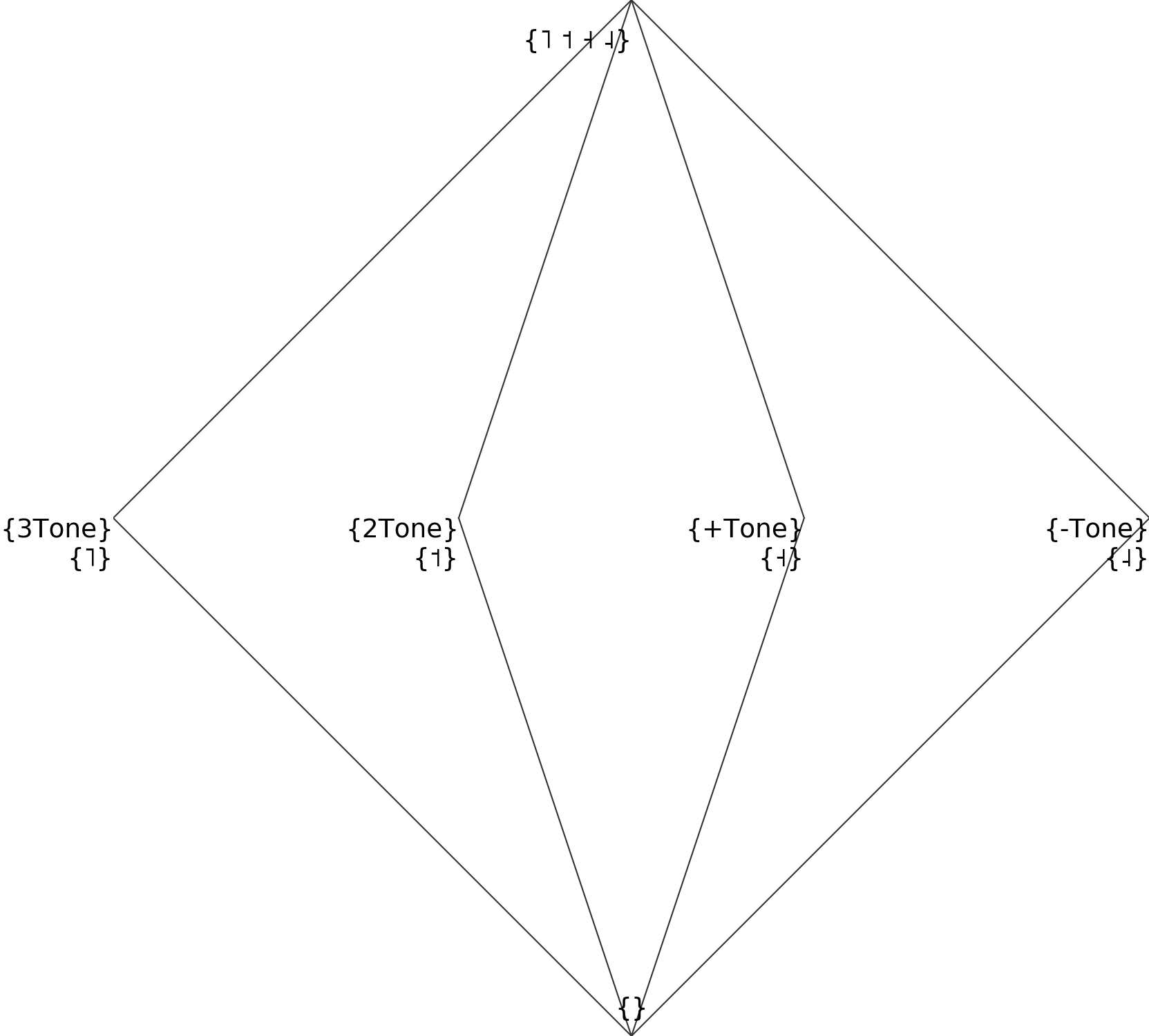

It results in this natural class hierarchy:

While such a file is allowed, it results in the tones having nothing in common. If some morpho-phonological alternations selects both high and mid tones, we will miss that generalization.

To express a scale, a simple solution is to create one less feature than there are segments (here four tones lead to three scale features), then fill in the upper diagonal with 1 and the lower diagonal with 0 (or the opposite). For example:

sound_id	scale1	scale2	scale3
˥	1	1	1
˦	0	1	1
˧	0	0	1
˨	0	0	0

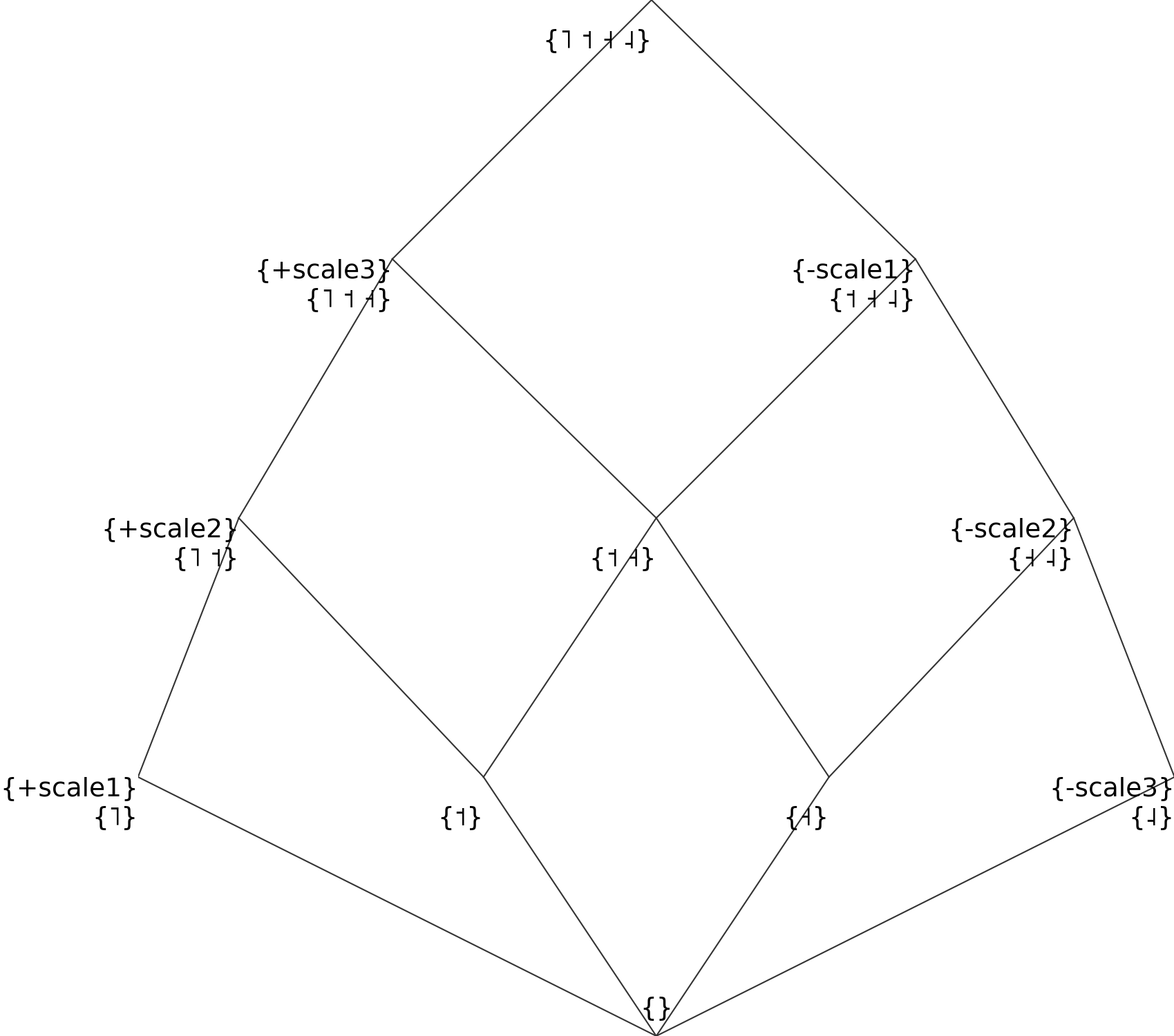

It will result in the natural classes below:

Since this is not very readable, we can re-write the same thing in a more readable way using a combination of binary and monovalent features:

sound_id	Top	High	Low	Bottom
˥	1	1		0
˦	0	1		0
˧	0		1	0
˨	0		1	1

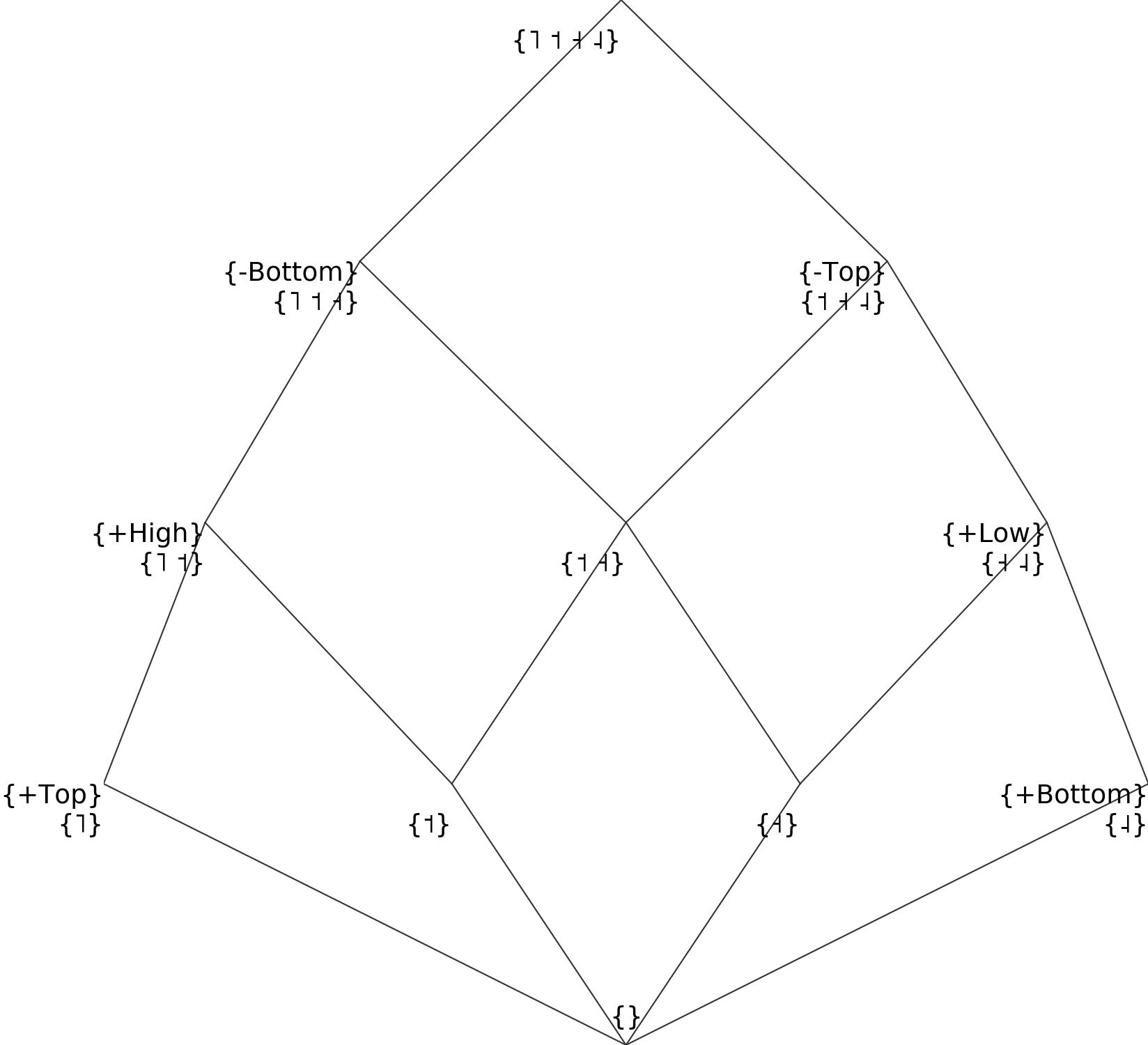

Which leads to the same structure:

When implementing tones, I recommend to mark them all as [-segmental] to ensure that they share a common class, and to write all other features as [+segmental].

Diphthongs

Diphthongs are not usually decomposed using distinctive features, as they are complex sequences (see this question on the Linguist List). However, if diphthongs alternate with simple vowels in your data, adding diphthongs in the list of phonological segments can allow Qumin to capture better generalizations. The strategy I have employed so far is the following:

• Write diphthongs in a non-ambiguous way in the data (either ‘aj’ or ‘aˑi’, but not ‘ai’ when the same sequence can sometimes be two vowels)

• Copy the features from the initial vowel

• Add a monovalent feature [DIPHTHONG]

• Add monovalent features [DIPHTHONG_J], [DIPHTHONG_W], or [to_high], [to_back], [to_low], [to_front] etc, as needed to encode the second segment.

This is a small example for a few English diphthongs:

sound_id	high	low	back	LABIAL	tense	diphtong j	diphtong ə	diphtong W	diphtong
a	0	1	0		1				0
aˑʊ	0	1	1		1			1	1
aˑɪ	0	1	1		1	1			1
ɪ	1	0	0		0				0
ɪˑə	1	0	0		0		1		1

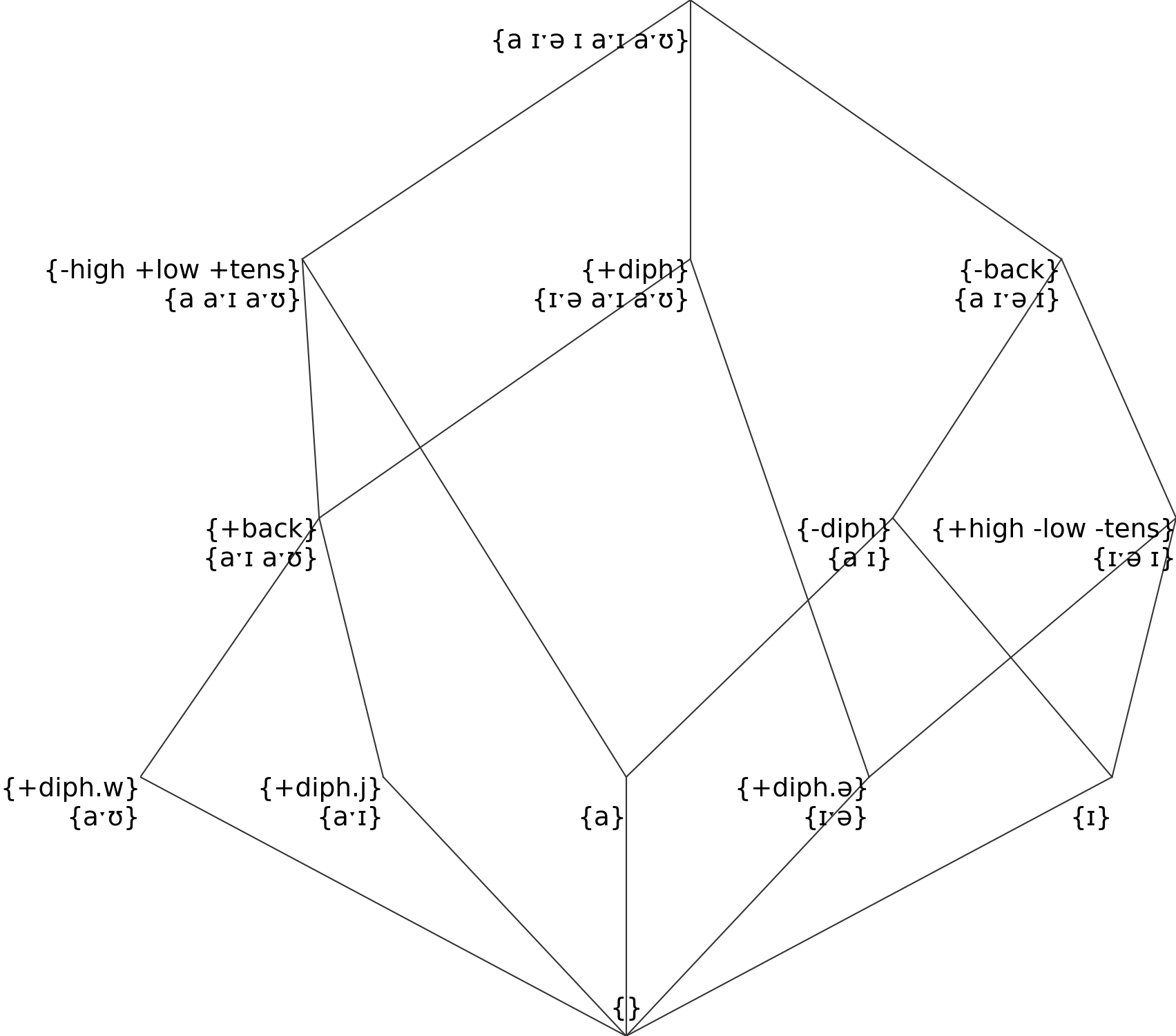

Which leads to the following classes:

Others

• Stress: I recommend to mark it directly on vowels, and duplicate the vowel inventory to have both stressed and unstressed counterpart. A simple binary [±stress] feature is enough to distinguish them.

• Length: I recommend to mark length, when possible, on vowels.
